Through our sister company ARTSPAN Inc. can offer insulated metal panels that are available in a variety of configurations, as seen below.
HORIZON WALL MS – MESA

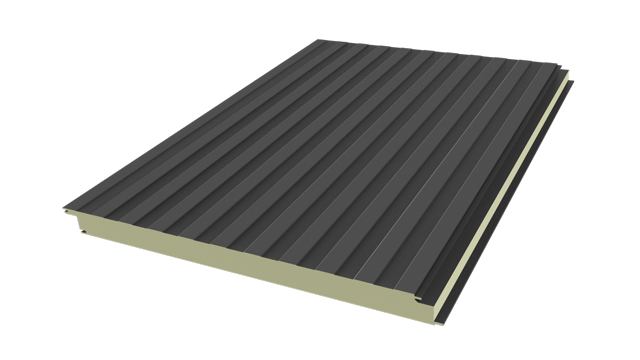

Horizon Wall - Mesa Smooth panels are produced with a standard Mesa profiled smooth steel face. These panels are an economical option for industrial and commercial walls, with added strength.
- Coverage Width: 42” (1067mm).
- Panel Lengths: 8’ to 52’ (2438mm to 15850mm).
- Exterior Face: 22ga, 24ga, or 26ga Mesa Smooth galvanized G-90 (Z275) pre painted steel.
- Interior Face: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options may be available.
| THICKNESS | 2” | 3” | 4” | 5” | 6” |
|---|---|---|---|---|---|
| R-VALUE* | 16.67 | 25 | 33.33 | 41.67 | 50 |

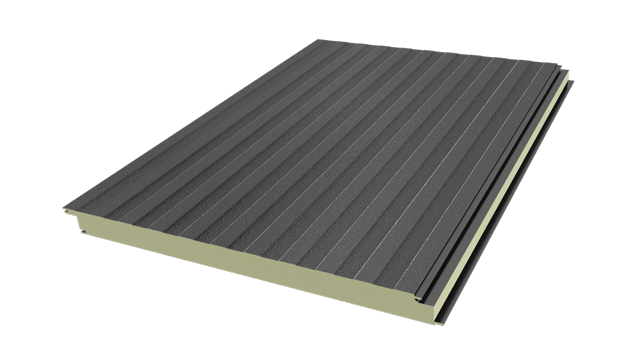

Horizon Wall - Mesa Light Embossed panels are produced with a standard Mesa profiled Light Embossed steel face. These panels are an economical option for industrial and commercial walls, with added strength from a double Mesa profile for long panel lengths.
- Coverage Width: 42” (1067mm).
- Panel Lengths: 8’ to 52’ (2438mm to 15850mm).
- Exterior Face: 22ga, 24ga, or 26ga Mesa Light Embossed galvanized G-90 (Z275) pre painted steel
- Interior Face: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options are available.
| THICKNESS | 2” | 3” | 4” | 5” | 6” |
|---|---|---|---|---|---|
| R-VALUE* | 16.67 | 25 | 33.33 | 41.67 | 50 |
Standard Colours
Regal White
Old Zinc Grey
Ash Grey
Weathered Copper
Sierra Tan
Charcoal
Premium Colours
Parchment
Champagne Metallic*
Mocha
Bronze
Dark Bronze
Copper Penny*
Terra Cotta
Colonial Red
Retro Red
Hemlock Green
Forest Green
Hartford Green
Black
Silver Metallic*
Twilight Blue
Regal Blue
Weathered Zinc*
Old Town Grey
Slate Grey
TESTING: INSULATED METAL PANELS
| Standard | Description | Results |
|---|---|---|
| CAN/ULC S101 | Standard Methods of Fire Endurance Tests of Building Construction and Materials | 15-minute stay in place |
| CAN/ULC S102 | Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies |
Flame Spread < 25, Smoke Development < 200 |
| CAN/ULC S126 | Standard Method of Test for Fire Spread Under Roof-Deck Assemblies | Complies |
| CAN/ULC S127 | Standard Corner Wall Method of Test for Flammability Characteristics of Non-Melting Foam Plastic Building Materials | Flame Spread < 350 foam core w/o steel skin |
| CAN/ULC S138 | Standard Method of Test for Fire Growth of Insulated Building Metal Panels in a Full-Scale Room Configuration | Complies |
| ASTM E84 | Standard Test Method for Surface Burning Characteristics of Building Materials | Flame Spread < 25, Smoke Development < 200 |
| NFPA 286 | Standard Methods of Fire Tests for Evaluating Contribution for Wall and Ceiling Interior Finish to Room Fire Growth | Complies |
| ASTM E72 | Standard Test Methods of Conducting Strength Tests of Panels for Building Construction | See Load Charts for load/span and deflection tables |
| ASTM E1592 | Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference | See Load Charts |
| ASTM E1646 | Standard Test Method for Water Penetration of Exterior Metal Roof Panel Systems | No water penetration at 20 psf pressure differential |
| ASTM E1680 | Standard Test Method for Rate of Air Leakage Through Exterior Metal Roof Panel Systems | 0.02 L/(s.m2) at 75 Pa (0.004 cfm/ft2 at 1.57 psf) |
| ASTM E283 | Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen |
0.02 L/(s.m2) at 75 Pa (0.004 cfm/ft2 at 1.57 psf) |
| ASTM E331 | Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference | No water penetration at 20 psf pressure differential |
| ASTM C518 | Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus |
K-Factor of 0.136 BTU.in/hr.ft2. °F at 75°F |
| ASTM C1363 | Standard Test Method for Thermal Performance of Building Materials and Envelope Assemblies by Means of a Hot Box Apparatus | K-Factor of 0.12 BTU.in/ hr.ft2. °F at 39°F |
WALL LOAD SPAN TABLES
- PRODUCT: Insulated Wall Panel
- PROFILE: Mesa or Smooth
- SERIES: Edge, Horizon
- GAUGE: 26ga or heavier
- FINISHED: Embossed or Smooth
| Panel Thickness | Design Criteria | 4' Allowable Loads (PSF) | 5' Allowable Loads (PSF) | 6' Allowable Loads (PSF) | 7' Allowable Loads (PSF) | 8' Allowable Loads (PSF) | 9' Allowable Loads (PSF) | 10' Allowable Loads (PSF) | 11' Allowable Loads (PSF) | 12' Allowable Loads (PSF) | 13' Allowable Loads (PSF) | 14' Allowable Loads (PSF) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" Thick (See Table Note #3) |
Bending/Shear | 93 | 59 | 41 | 30 | 23 | 18 | 15 | 12 | 10 | ||
| 2" Thick | Deflection (L/180) | 47 | 41 | 33 | 27 | 22 | 19 | 16 | 14 | 12 | ||
| 2" Thick | Connection | 42 | 35 | 33 | 26 | 22 | 19 | 16 | 15 | 13 | ||
| 3" Thick | Bending/Shear | 126 | 101 | 84 | 68 | 52 | 41 | 33 | 27 | 23 | ||
| 3" Thick | Deflection (L/180) | 94 | 77 | 68 | 58 | 34 | 32 | 29 | 19 | 17 | ||
| 3" Thick | Connection | 57 | 45 | 38 | 33 | 29 | 25 | 23 | 20 | 19 | ||
| 4" Thick | Bending/Shear | 168 | 134 | 112 | 84 | 64 | 51 | 41 | 34 | 29 | 24 | 21 |
| 4" Thick | Deflection (L/180) | 110 | 101 | 92 | 79 | 67 | 57 | 49 | 42 | 37 | 32 | 29 |
| 4" Thick | Connection | 57 | 45 | 38 | 33 | 29 | 25 | 23 | 20 | 19 | 17 | 16 |
| 5" Thick | Bending/Shear | 168 | 134 | 112 | 84 | 64 | 51 | 41 | 34 | 29 | 24 | 21 |
| 5" Thick | Deflection (L/180) | 110 | 101 | 92 | 79 | 67 | 57 | 49 | 42 | 37 | 32 | 29 |
| 5" Thick | Connection | 57 | 45 | 38 | 33 | 29 | 25 | 23 | 20 | 19 | 17 | 16 |
| 6" Thick | Bending/Shear | 168 | 134 | 112 | 84 | 64 | 51 | 41 | 34 | 29 | 24 | 21 |
| 6" Thick | Deflection (L/180) | 110 | 101 | 92 | 79 | 67 | 57 | 49 | 42 | 37 | 32 | 29 |
| 6" Thick | Connection | 57 | 45 | 38 | 33 | 29 | 25 | 23 | 20 | 19 | 17 | 16 |
TABLE NOTES:
1) Allowable loads were derived from tests conducted in accordance with ASTM E1592 and ASTM E72.
2) Allowable loads are calculated with a factor of safety of 2.0 for bending and shear.
3) Connection strengths reflect a standard fastener pattern - with two (2) 1/4" - 14 self drilling screw into minimum 14ga substrate. Other substrates must be designed separately. 2" wall panel utilize a flat clip. All other thicknesses utilize an angle clip.
4) Fastener capacity is based on manufacturer pullout/pullover data and are calculated with a safety factor of 3.0.
5) Allowable loads assume a minimum bearing of 2".
6) Thermal Effects were not considered in analysis.
7) The structural capacity of the supporting members were not considered.
8) Bending/Shear and Deflection for 5" and 6" panels based on 4" capacity.
PANEL WEIGHTS (PSF)
| Panel Thickness (in.) |
Panel Width (in.) |
26/26 Steel Gauge (Facer/Liner) | 24/26 Steel Gauge (Facer/Liner) | 22/26 Steel Gauge (Facer/Liner) | 26/24 Steel Gauge (Facer/Liner) | 24/24 Steel Gauge (Facer/Liner) | 22/24 Steel Gauge (Facer/Liner) | 26/22 Steel Gauge (Facer/Liner) | 24/22 Steel Gauge (Facer/Liner) | 22/22 Steel Gauge (Facer/Liner) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 42 | 2.23 | 2.48 | 2.73 | 2.48 | 2.73 | 2.98 | 2.76 | 2.98 | 3.23 |
| 3 | 42 | 2.44 | 2.69 | 2.94 | 2.69 | 2.94 | 3.19 | 2.94 | 3.19 | 3.44 |
| 4 | 42 | 2.65 | 2.90 | 3.15 | 2.90 | 3.15 | 3.40 | 3.15 | 3.40 | 3.65 |
| 5 | 42 | 2.85 | 3.10 | 3.35 | 3.10 | 3.35 | 3.60 | 3.35 | 3.60 | 3.85 |
| 6 | 42 | 3.06 | 3.31 | 3.56 | 3.31 | 3.56 | 3.81 | 3.56 | 3.81 | 4.06 |
MAXIMUM PANEL LENGTHS BASED ON COLOUR (FT).
| Panel Thickness (in.) | Panel Width (in.) | Light Edge 22ga Wall* | Medium Edge 22ga Wall* | Dark Edge 22ga Wall* | Light Horizon 26ga/26ga Wall | Medium Horizon 26ga/26ga Wall | Dark Horizon 26ga/26ga Wall | Light Skyline 24ga/26ga Roof | Medium Skyline 24ga/26ga Roof | Dark Skyline 24ga/26ga Roof |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 42 | 25' | 25' | 20' | 38' | 25' | 16' | 47' | 36' | 24' |
| 3 | 42 | 30' | 30' | 20' | 45' | 35' | 25' | 50' | 38' | 30' |
| 4 | 42 | 30' | 30' | 25' | 50' | 38' | 28' | 52' | 41' | 32' |
| 5 | 42 | 32' | 30' | 25' | 52' | 41' | 30' | 52' | 44' | 34' |
| 6 | 42 | 32' | 30' | 25' | 52' | 44' | 32' | 52' | 47' | 36' |
*Smooth or Embossed
Light = Regal White
Medium = Sierra Tan, Parchment, Silver Metallic
Dark = All others
Based on 5' support spacing for walls & 4' support spacing for roofs
*Smooth or Embossed
Subject to change without notice. Please refer to our website, www.artspaninc.com for current information.
Artspan Testing Sheet Results – March 30 (Download File)
Panel Weights and Lengths (Download File)
IMP Wall Standard Details (Download File)
Horizon Data Sheet (Download File)
IMP Horizon Wall Guide Specification (Download File)
IMP Horizon Wall Guide Specification (Download Editable File)
Insulated Metal Panel Brochure (Download File)
LEADING EDGE WALL

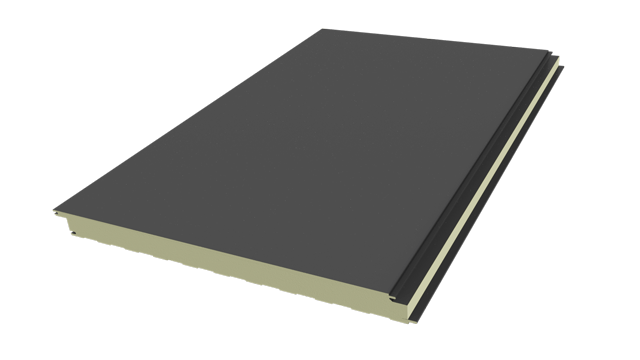

Leading Edge - Smooth panels are produced with a standard smooth steel face. This provides a flat, smooth face, adding a clean look to the exterior.
- COVERAGE WIDTH: 42” (1067mm)
- PANEL LENGTHS: 8’ TO 32’ (2438mm to 9754mm)
- EXTERIOR FACE: 22ga Flat Smooth galvanized G-90 (Z275) pre painted steel
- INTERIOR FACE: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options may be available.
| THICKNESS | 2” | 3” | 4” | 5” | 6” |
|---|---|---|---|---|---|
| R-VALUE* | 16.67 | 25 | 33.33 | 41.67 | 50 |

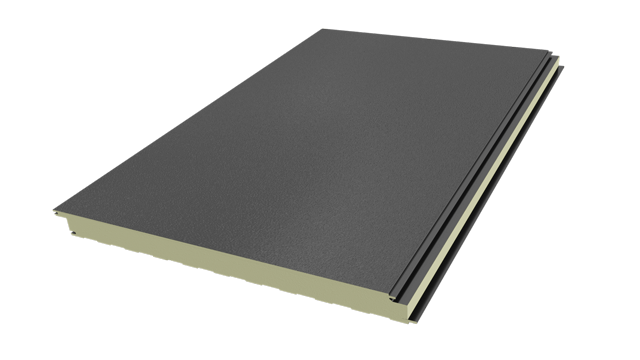

Leading Edge Wall - Light Embossed panels are produced with a standard light embossed flat steel face. This provides added subtle visual texture to a flat panel.
- COVERAGE WIDTH: 42” (1067mm)
- PANEL LENGTHS: 8’ TO 32’ (2438mm to 9754mm)
- EXTERIOR FACE: 22ga Flat Light Embossed galvanized G-90 (Z275) pre painted steel
- INTERIOR FACE: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options are available.
| THICKNESS | 2” | 3” | 4” | 5” | 6” |
|---|---|---|---|---|---|
| R-VALUE* | 16.67 | 25 | 33.33 | 41.67 | 50 |
Standard Colours
Regal White
Old Zinc Grey
Ash Grey
Weathered Copper
Sierra Tan
Charcoal
Premium Colours
Parchment
Champagne Metallic*
Mocha
Bronze
Dark Bronze
Copper Penny*
Terra Cotta
Colonial Red
Retro Red
Hemlock Green
Forest Green
Hartford Green
Black
Silver Metallic*
Twilight Blue
Regal Blue
Weathered Zinc*
Old Town Grey
Slate Grey
| Standard | Description | Results |
|---|---|---|
| CAN/ULC S101 | Standard Methods of Fire Endurance Tests of Building Construction and Materials | 15-minute stay in place |
| CAN/ULC S102 | Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies |
Flame Spread < 25, Smoke Development < 200 |
| CAN/ULC S126 | Standard Method of Test for Fire Spread Under Roof-Deck Assemblies | Complies |
| CAN/ULC S127 | Standard Corner Wall Method of Test for Flammability Characteristics of Non-Melting Foam Plastic Building Materials | Flame Spread < 350 foam core w/o steel skin |
| CAN/ULC S138 | Standard Method of Test for Fire Growth of Insulated Building Metal Panels in a Full-Scale Room Configuration | Complies |
| ASTM E84 | Standard Test Method for Surface Burning Characteristics of Building Materials | Flame Spread < 25, Smoke Development < 200 |
| NFPA 286 | Standard Methods of Fire Tests for Evaluating Contribution for Wall and Ceiling Interior Finish to Room Fire Growth | Complies |
| ASTM E72 | Standard Test Methods of Conducting Strength Tests of Panels for Building Construction | See Load Charts for load/span and deflection tables |
| ASTM E1592 | Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference | See Load Charts |
| ASTM E1646 | Standard Test Method for Water Penetration of Exterior Metal Roof Panel Systems | No water penetration at 20 psf pressure differential |
| ASTM E1680 | Standard Test Method for Rate of Air Leakage Through Exterior Metal Roof Panel Systems | 0.02 L/(s.m2) at 75 Pa (0.004 cfm/ft2 at 1.57 psf) |
| ASTM E283 | Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen |
0.02 L/(s.m2) at 75 Pa (0.004 cfm/ft2 at 1.57 psf) |
| ASTM E331 | Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference | No water penetration at 20 psf pressure differential |
| ASTM C518 | Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus |
K-Factor of 0.136 BTU.in/hr.ft2. °F at 75°F |
| ASTM C1363 | Standard Test Method for Thermal Performance of Building Materials and Envelope Assemblies by Means of a Hot Box Apparatus | K-Factor of 0.12 BTU.in/ hr.ft2. °F at 39°F |
WALL LOAD SPAN TABLES
- PRODUCT: Insulated Wall Panel
- PROFILE: Mesa or Smooth
- SERIES: Edge, Horizon
- GAUGE: 26ga or heavier
- FINISHED: Embossed or Smooth
| Panel Thickness | Design Criteria | 4' Allowable Loads (PSF) | 5' Allowable Loads (PSF) | 6' Allowable Loads (PSF) | 7' Allowable Loads (PSF) | 8' Allowable Loads (PSF) | 9' Allowable Loads (PSF) | 10' Allowable Loads (PSF) | 11' Allowable Loads (PSF) | 12' Allowable Loads (PSF) | 13' Allowable Loads (PSF) | 14' Allowable Loads (PSF) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" Thick (See Table Note #3) |
Bending/Shear | 93 | 59 | 41 | 30 | 23 | 18 | 15 | 12 | 10 | ||
| 2" Thick | Deflection (L/180) | 47 | 41 | 33 | 27 | 22 | 19 | 16 | 14 | 12 | ||
| 2" Thick | Connection | 42 | 35 | 33 | 26 | 22 | 19 | 16 | 15 | 13 | ||
| 3" Thick | Bending/Shear | 126 | 101 | 84 | 68 | 52 | 41 | 33 | 27 | 23 | ||
| 3" Thick | Deflection (L/180) | 94 | 77 | 68 | 58 | 34 | 32 | 29 | 19 | 17 | ||
| 3" Thick | Connection | 57 | 45 | 38 | 33 | 29 | 25 | 23 | 20 | 19 | ||
| 4" Thick | Bending/Shear | 168 | 134 | 112 | 84 | 64 | 51 | 41 | 34 | 29 | 24 | 21 |
| 4" Thick | Deflection (L/180) | 110 | 101 | 92 | 79 | 67 | 57 | 49 | 42 | 37 | 32 | 29 |
| 4" Thick | Connection | 57 | 45 | 38 | 33 | 29 | 25 | 23 | 20 | 19 | 17 | 16 |
| 5" Thick | Bending/Shear | 168 | 134 | 112 | 84 | 64 | 51 | 41 | 34 | 29 | 24 | 21 |
| 5" Thick | Deflection (L/180) | 110 | 101 | 92 | 79 | 67 | 57 | 49 | 42 | 37 | 32 | 29 |
| 5" Thick | Connection | 57 | 45 | 38 | 33 | 29 | 25 | 23 | 20 | 19 | 17 | 16 |
| 6" Thick | Bending/Shear | 168 | 134 | 112 | 84 | 64 | 51 | 41 | 34 | 29 | 24 | 21 |
| 6" Thick | Deflection (L/180) | 110 | 101 | 92 | 79 | 67 | 57 | 49 | 42 | 37 | 32 | 29 |
| 6" Thick | Connection | 57 | 45 | 38 | 33 | 29 | 25 | 23 | 20 | 19 | 17 | 16 |
TABLE NOTES:
1) Allowable loads were derived from tests conducted in accordance with ASTM E1592 and ASTM E72.
2) Allowable loads are calculated with a factor of safety of 2.0 for bending and shear.
3) Connection strengths reflect a standard fastener pattern - with two (2) 1/4" - 14 self drilling screw into minimum 14ga substrate. Other substrates must be designed separately. 2" wall panel utilize a flat clip. All other thicknesses utilize an angle clip.
4) Fastener capacity is based on manufacturer pullout/pullover data and are calculated with a safety factor of 3.0.
5) Allowable loads assume a minimum bearing of 2".
6) Thermal Effects were not considered in analysis.
7) The structural capacity of the supporting members were not considered.
8) Bending/Shear and Deflection for 5" and 6" panels based on 4" capacity.
PANEL WEIGHTS (PSF)
| Panel Thickness (in.) |
Panel Width (in.) |
26/26 Steel Gauge (Facer/Liner) | 24/26 Steel Gauge (Facer/Liner) | 22/26 Steel Gauge (Facer/Liner) | 26/24 Steel Gauge (Facer/Liner) | 24/24 Steel Gauge (Facer/Liner) | 22/24 Steel Gauge (Facer/Liner) | 26/22 Steel Gauge (Facer/Liner) | 24/22 Steel Gauge (Facer/Liner) | 22/22 Steel Gauge (Facer/Liner) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 42 | 2.23 | 2.48 | 2.73 | 2.48 | 2.73 | 2.98 | 2.76 | 2.98 | 3.23 |
| 3 | 42 | 2.44 | 2.69 | 2.94 | 2.69 | 2.94 | 3.19 | 2.94 | 3.19 | 3.44 |
| 4 | 42 | 2.65 | 2.90 | 3.15 | 2.90 | 3.15 | 3.40 | 3.15 | 3.40 | 3.65 |
| 5 | 42 | 2.85 | 3.10 | 3.35 | 3.10 | 3.35 | 3.60 | 3.35 | 3.60 | 3.85 |
| 6 | 42 | 3.06 | 3.31 | 3.56 | 3.31 | 3.56 | 3.81 | 3.56 | 3.81 | 4.06 |
MAXIMUM PANEL LENGTHS BASED ON COLOUR (FT).
| Panel Thickness (in.) | Panel Width (in.) | Light Edge 22ga Wall* | Medium Edge 22ga Wall* | Dark Edge 22ga Wall* | Light Horizon 26ga/26ga Wall | Medium Horizon 26ga/26ga Wall | Dark Horizon 26ga/26ga Wall | Light Skyline 24ga/26ga Roof | Medium Skyline 24ga/26ga Roof | Dark Skyline 24ga/26ga Roof |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 42 | 25' | 25' | 20' | 38' | 25' | 16' | 47' | 36' | 24' |
| 3 | 42 | 30' | 30' | 20' | 45' | 35' | 25' | 50' | 38' | 30' |
| 4 | 42 | 30' | 30' | 25' | 50' | 38' | 28' | 52' | 41' | 32' |
| 5 | 42 | 32' | 30' | 25' | 52' | 41' | 30' | 52' | 44' | 34' |
| 6 | 42 | 32' | 30' | 25' | 52' | 44' | 32' | 52' | 47' | 36' |
*Smooth or Embossed
Light = Regal White
Medium = Sierra Tan, Parchment, Silver Metallic
Dark = All others
Based on 5' support spacing for walls & 4' support spacing for roofs
*Smooth or Embossed
Subject to change without notice. Please refer to our website, www.artspaninc.com for current information.
Artspan Testing Sheet Results – March 30 (Download File)
Panel Weights and Lengths (Download File)
IMP Wall Standard Details (Download File)
Edge Data Sheet (Download File)
IMP Leading Edge Wall Guide Specification (Download File)
IMP Leading Edge Wall Guide Specification (Download Editable File)

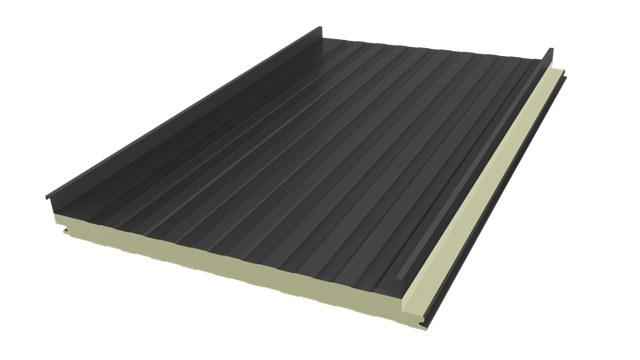

SKYLINE ROOF
Skyline Roof panels are produced with a standard Mesa profiled non-embossed smooth steel face. These roof panels are an economical option for industrial and commercial projects. The 2” Standing seam is mechanically folded and incorporates a hidden fastened clip.
- COVERAGE WIDTH: 42” (1067mm)
- PANEL LENGTHS: 10’ to 52’ (3048mm to 15850mm)
- EXTERIOR FACE: 22ga, 24ga, or 26ga Mesa Smooth galvanized G-90 (Z275) pre painted steel
- INTERIOR FACE: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options are available.
| THICKNESS | 2” | 3” | 4” | 5” | 6” |
|---|---|---|---|---|---|
| R-VALUE* | 16.67 | 25 | 33.33 | 41.67 | 50 |
Standard Colours
Regal White
Old Zinc Grey
Ash Grey
Weathered Copper
Sierra Tan
Charcoal
Premium Colours
Parchment
Champagne Metallic*
Mocha
Bronze
Dark Bronze
Copper Penny*
Terra Cotta
Colonial Red
Retro Red
Hemlock Green
Forest Green
Hartford Green
Black
Silver Metallic*
Twilight Blue
Regal Blue
Weathered Zinc*
Old Town Grey
Slate Grey
| Standard | Description | Results |
|---|---|---|
| CAN/ULC S101 | Standard Methods of Fire Endurance Tests of Building Construction and Materials | 15-minute stay in place |
| CAN/ULC S102 | Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies |
Flame Spread < 25, Smoke Development < 200 |
| CAN/ULC S126 | Standard Method of Test for Fire Spread Under Roof-Deck Assemblies | Complies |
| CAN/ULC S127 | Standard Corner Wall Method of Test for Flammability Characteristics of Non-Melting Foam Plastic Building Materials | Flame Spread < 350 foam core w/o steel skin |
| CAN/ULC S138 | Standard Method of Test for Fire Growth of Insulated Building Metal Panels in a Full-Scale Room Configuration | Complies |
| ASTM E84 | Standard Test Method for Surface Burning Characteristics of Building Materials | Flame Spread < 25, Smoke Development < 200 |
| NFPA 286 | Standard Methods of Fire Tests for Evaluating Contribution for Wall and Ceiling Interior Finish to Room Fire Growth | Complies |
| ASTM E72 | Standard Test Methods of Conducting Strength Tests of Panels for Building Construction | See Load Charts for load/span and deflection tables |
| ASTM E1592 | Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference | See Load Charts |
| ASTM E1646 | Standard Test Method for Water Penetration of Exterior Metal Roof Panel Systems | No water penetration at 20 psf pressure differential |
| ASTM E1680 | Standard Test Method for Rate of Air Leakage Through Exterior Metal Roof Panel Systems | 0.02 L/(s.m2) at 75 Pa (0.004 cfm/ft2 at 1.57 psf) |
| ASTM E283 | Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen |
0.02 L/(s.m2) at 75 Pa (0.004 cfm/ft2 at 1.57 psf) |
| ASTM E331 | Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference | No water penetration at 20 psf pressure differential |
| ASTM C518 | Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus |
K-Factor of 0.136 BTU.in/hr.ft2. °F at 75°F |
| ASTM C1363 | Standard Test Method for Thermal Performance of Building Materials and Envelope Assemblies by Means of a Hot Box Apparatus | K-Factor of 0.12 BTU.in/ hr.ft2. °F at 39°F |
ROOF LOAD SPAN TABLES
- PRODUCT: Insulated Roof Panel
- PROFILE: Mesa
- SERIES: Skyline
- GAUGE: 26ga or heavier
- FINISHED: Smooth
| Panel Thickness | Design Criteria | 2' Allowable Loads (PSF) | 3' Allowable Loads (PSF) | 4' Allowable Loads (PSF) | 5' Allowable Loads (PSF) | 6' Allowable Loads (PSF) | 7' Allowable Loads (PSF) | 8' Allowable Loads (PSF) |
|---|---|---|---|---|---|---|---|---|
| 2" Thick | Bending/Shear | 192 | 128 | 96 | 77 | 64 | 49 | 38 |
| 2" Thick | Deflection (L/240) | 58 | 53 | 48 | 43 | 36 | 29 | 24 |
| 2" Thick | Connection | 65 | 44 | 33 | 26 | 22 | 19 | 16 |
| 3" Thick | Bending/Shear | 192 | 128 | 96 | 77 | 64 | 49 | 38 |
| 3" Thick | Deflection (L/240) | 58 | 53 | 48 | 43 | 36 | 29 | 24 |
| 3" Thick | Connection | 64 | 44 | 33 | 26 | 22 | 19 | 16 |
| 4" Thick | Bending/Shear | 291 | 224 | 168 | 134 | 112 | 96 | 84 |
| 4" Thick | Deflection (L/240) | 98 | 95 | 92 | 90 | 76 | 63 | 53 |
| 4" Thick | Connection | 65 | 44 | 33 | 26 | 22 | 19 | 16 |
| 5" Thick | Bending/Shear | 317 | 286 | 215 | 172 | 143 | 123 | 107 |
| 5" Thick | Deflection (L/240) | 108 | 102 | 96 | 90 | 83 | 70 | 58 |
| 5" Thick | Connection | 65 | 44 | 33 | 26 | 22 | 19 | 16 |
| 6" Thick | Bending/Shear | 349 | 312 | 248 | 199 | 166 | 142 | 124 |
| 6" Thick | Deflection (L/240) | 110 | 110 | 109 | 109 | 108 | 92 | 77 |
| 6" Thick | Connection | 65 | 44 | 33 | 26 | 22 | 19 | 16 |
TABLE NOTES:
1. Allowable loads were derived from tests conducted in accordance with ASTM E1592 and ASTM E72.
2. Allowable loads are calculated with a factor of safety of 2.0 for bending and shear.
3. Connection strengths reflect a standard fastener pattern - with two (2) 1/4" - 14 self drilling screw into minimum 14ga substrate. Other substrates must be designed separately.
4. Fastener capacity is based on manufacturer pullout/pullover data and are calculated with a safety factor of 3.0.
5. Allowable loads assume a minimum bearing of 2".
6. Thermal Effects were not considered in analysis.
7. The structural capacity of the supporting members were not considered.
PANEL WEIGHTS (PSF)
| Panel Thickness (in.) |
Panel Width (in.) |
26/26 Steel Gauge (Facer/Liner) | 24/26 Steel Gauge (Facer/Liner) | 22/26 Steel Gauge (Facer/Liner) | 26/24 Steel Gauge (Facer/Liner) | 24/24 Steel Gauge (Facer/Liner) | 22/24 Steel Gauge (Facer/Liner) | 26/22 Steel Gauge (Facer/Liner) | 24/22 Steel Gauge (Facer/Liner) | 22/22 Steel Gauge (Facer/Liner) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 42 | 2.23 | 2.48 | 2.73 | 2.48 | 2.73 | 2.98 | 2.76 | 2.98 | 3.23 |
| 3 | 42 | 2.44 | 2.69 | 2.94 | 2.69 | 2.94 | 3.19 | 2.94 | 3.19 | 3.44 |
| 4 | 42 | 2.65 | 2.90 | 3.15 | 2.90 | 3.15 | 3.40 | 3.15 | 3.40 | 3.65 |
| 5 | 42 | 2.85 | 3.10 | 3.35 | 3.10 | 3.35 | 3.60 | 3.35 | 3.60 | 3.85 |
| 6 | 42 | 3.06 | 3.31 | 3.56 | 3.31 | 3.56 | 3.81 | 3.56 | 3.81 | 4.06 |
MAXIMUM PANEL LENGTHS BASED ON COLOUR (FT).
| Panel Thickness (in.) | Panel Width (in.) | Light Edge 22ga Wall* | Medium Edge 22ga Wall* | Dark Edge 22ga Wall* | Light Horizon 26ga/26ga Wall | Medium Horizon 26ga/26ga Wall | Dark Horizon 26ga/26ga Wall | Light Skyline 24ga/26ga Roof | Medium Skyline 24ga/26ga Roof | Dark Skyline 24ga/26ga Roof |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 42 | 25' | 25' | 20' | 38' | 25' | 16' | 47' | 36' | 24' |
| 3 | 42 | 30' | 30' | 20' | 45' | 35' | 25' | 50' | 38' | 30' |
| 4 | 42 | 30' | 30' | 25' | 50' | 38' | 28' | 52' | 41' | 32' |
| 5 | 42 | 32' | 30' | 25' | 52' | 41' | 30' | 52' | 44' | 34' |
| 6 | 42 | 32' | 30' | 25' | 52' | 44' | 32' | 52' | 47' | 36' |
*Smooth or Embossed
Light = Regal White
Medium = Sierra Tan, Parchment, Silver Metallic
Dark = All others
Based on 5' support spacing for walls & 4' support spacing for roofs
*Smooth or Embossed
Subject to change without notice. Please refer to our website, www.artspaninc.com for current information.
Artspan Testing Sheet Results – March 30 (Download File)
Panel Weights and Lengths (Download File)
IMP Roof Standard Details (Download File)
Skyline Data Sheet (Download File)
IMP Skyline Roof Guide Specification (Download File)
IMP Skyline Roof Guide Specification (Download Editable File)
